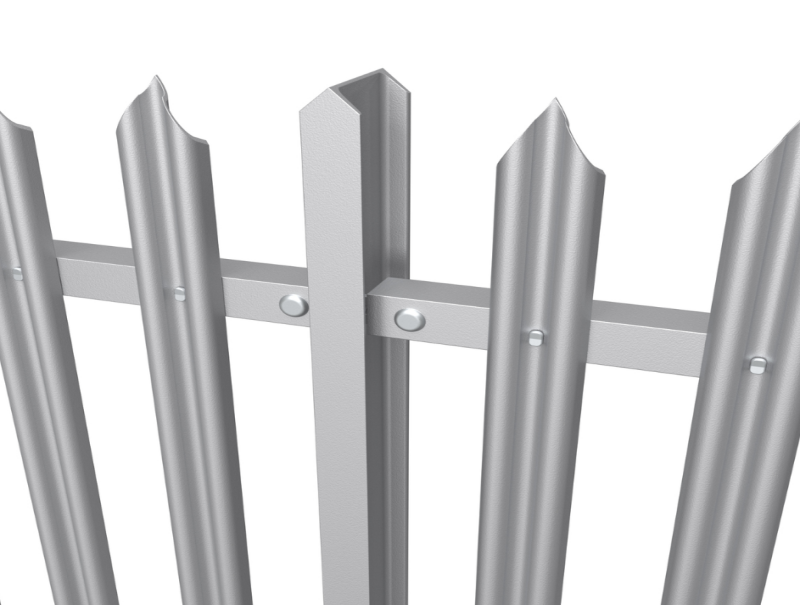

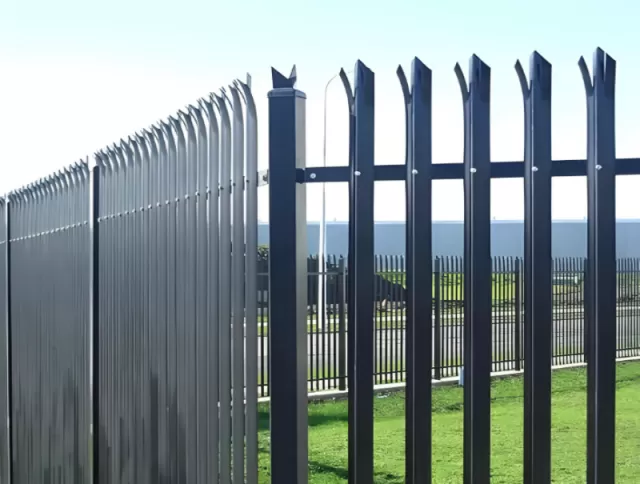

The Palisade Fence is the ultimate perimeter security solution, combining a formidable physical barrier with a powerful psychological deterrent. Unlike standard chain-link or mesh fences, its robust, vertical steel pales with pointed tops are designed to be virtually unclimbable. It's the top choice for protecting critical infrastructure, industrial sites, and high-security properties worldwide, offering superior strength, long-term value, and a professional appearance.
DESCRIPTION
Steel Palisade Fencing is one of the most popular forms of security fencing. It is ideal for sites where a high level of protection is needed. It is often used for industrial and commercial properties, as well as outdoor public areas. It is not only a highly effective intruder deterrent but also provides an excellent boundary distinction for your property. Palisade fencing with "D" and "W" section pale provides an effective deterrent to
intruders.

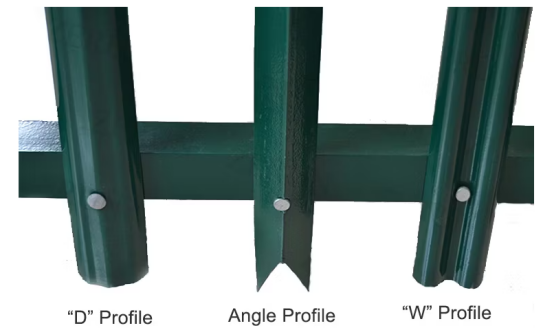

Palisade fences are available in a variety of styles and sizes, each with their own set of benefits and uses. Here are some of them:
W-shaped pales: W-shaped palisade fence is intended to provide a more durable or vandal-resistant barrier.
D-shaped pales: D-shape palisade fence is intended for low to moderate security applications, such as defining boundaries.
Angel steel pales: Angel steel pales are a basic structure that is commonly used in residential construction.

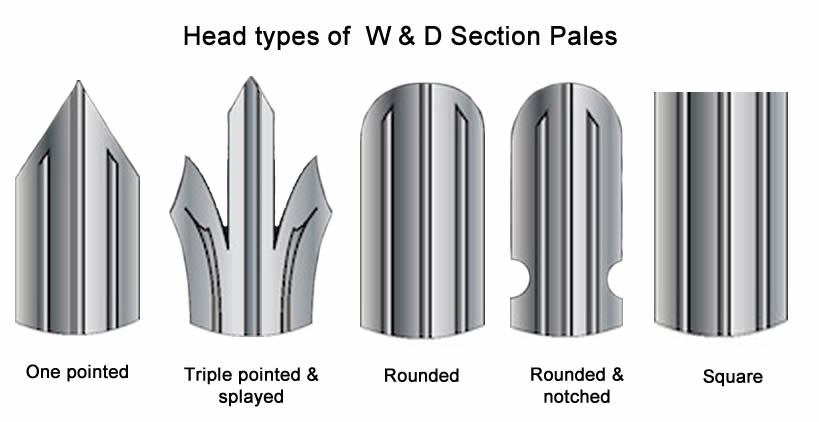

W & D Section Pales with 5 different head types:
Specification of Steel Palisade Fencing
| Regular Specification of W Pales , D Pales & Angle Pales Palisade Fence | ||||||||
| Panel Size | W Section Pale: 80mm | Angel Rail | Post | |||||
| Height | Width | Pales Thickness | Qty: Pale | Cross Rails | Square Post | Ⅰ Post | ||
| 1.8m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | 40×40×4mm 50×50×5mm 50×50×6mm | 60×60mm 80×80mm 00×100mm | 100×55mm | ||
| 2.1m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 2.4m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 3.0m | 2.75m | 2.0/2.5/3.0/3.5mm | 17Pcs | |||||
| 1.8m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| 2.4m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| W Section Pale: 75mm | ||||||||
| 1.8m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | 40×40×4mm 50×50×5mm 50×50×6mm | 60×60mm 80×80mm 100×100mm | 100×55mm | ||
| 2.1m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 2.4m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 3.0m | 2.75m | 2.0/2.5/3.0/3.5mm | 17Pcs | |||||
| 1.8m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| 2.4m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| D Section Pale: 65 | ||||||||
| 1.8m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | 40×40×4mm 50×50×5mm 50×50×6mm | 60×60mm 80×80mm 100×100mm | 100×55mm | ||
| 2.1m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 2.4m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 3.0m | 2.75m | 2.0/2.5/3.0/3.5mm | 17Pcs | |||||
| 1.8m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| 2.4m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| Angle Section Pale: 62mm | ||||||||
| 1.8m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | 40×40×4mm 50×50×5mm 50×50×6mm | 60×60mm 80×80mm 100×100mm | 100×55mm | ||
| 2.1m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 2.4m | 2.75m | 2.0/2.5/3.0mm | 17Pcs | |||||
| 3.0m | 2.75m | 2.0/2.5/3.0/3.5mm | 17Pcs | |||||
| 1.8m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| 2.4m | 3.00m | 2.0/2.5/3.0mm | 19Pcs | |||||
| Surface Treatment: Heavy Galvanized, Galvanized + Powder Coated | ||||||||
| Pale Head: can be do single pointed, triple pointed, square tops, round and notched tops or rounded only. | ||||||||
1Durability: Palisade fencing is known for its long lifespan and durability.
2Low maintenance: Steel palisade fences are weather-proof and don’t need to be repaired or maintained on a regular basis.
Visibility: Metal palisades provide good visibility, both from inside and outside the property.
Cost-effectiveness: While the initial cost of installing metal palisades may be higher than some other fencing options, they are generally considered to be a cost-effective choice in the long run.
1.Critical National Infrastructure & Utilities
Power Generation & Distribution: Nuclear, thermal, and renewable power plants, electrical substations, and transformer yards.
Water Treatment Facilities: Reservoirs, water pumping stations, and purification plants.
Telecommunications: Data centers, satellite communication stations, and major network hubs.
2. Transportation & Logistics Hubs
Airports: Securing airside operations, runways, cargo areas, and equipment compounds.
Seaports & Inland Ports: Protecting container yards, customs areas, and dock facilities from unauthorized access.
Railway Yards & Stations: Securing depots, control centers, and freight terminals.
3.Industrial & Commercial Facilities
Manufacturing Plants: Factories, heavy industrial complexes, and assembly plants.
Warehouses & Logistics Centers: Creating a secure boundary for storage and distribution hubs.
Fuel & Chemical Storage: Petrochemical refineries, fuel depots, and chemical storage facilities (often with anti-climb mesh infill for containment).
4.Public Sector & Government Institutions
Correctional Facilities: Prisons and detention centers (for outer perimeters).
Military Bases & Armories: Protecting sensitive zones within military installations.
Schools & Universities: Creating a clear and secure boundary for educational campuses.
Government Buildings: Embassies, ministry buildings, and research institutions.
5. High-Security Residential & Recreational Areas
Gated Communities & High-Net-Worth Estates: Providing a imposing yet aesthetically pleasing boundary.
Substations within Residential Areas: Discreetly shielding critical utility infrastructure.
Sports Stadiums & Large Event Venues: Managing crowd control and securing the perimeter.

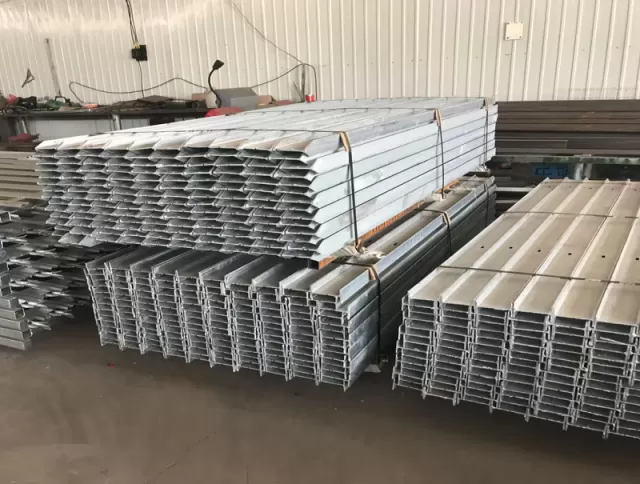

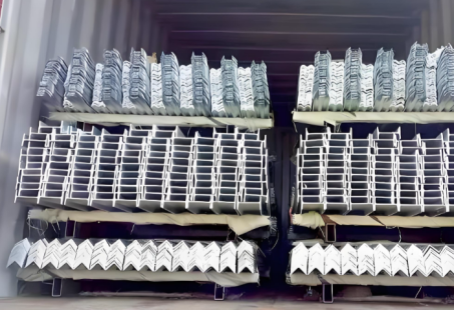

Packaging & Delivery
