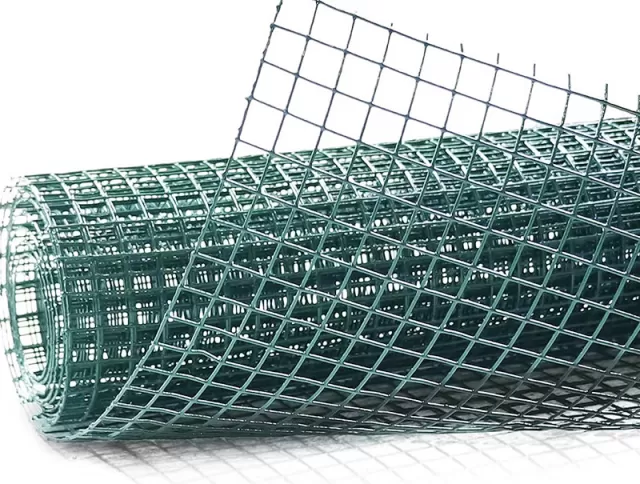

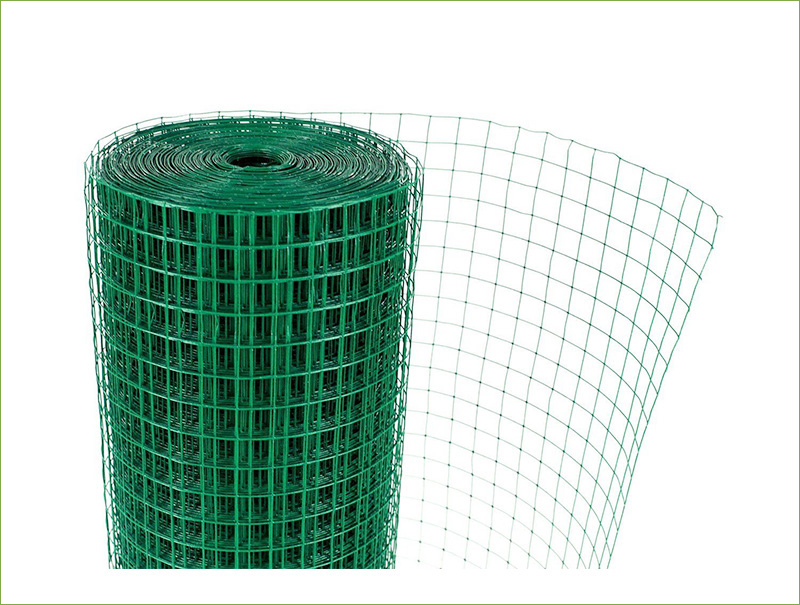

PVC Coated Welded Wire Mesh is first welded using black wire or galvanized wire and then processed with thermal dipped PVC/Vinyl coating. Plastic material is a better way to keep moisture and air from steel rusting. SPIDER PVC-coated welded wire mesh has a smooth, thick, uniform coating that won't peel or crack even when exposed to harsh marine environments, and the life time will be longer.
DESCRIPTION
PVC coating offers relatively low costs, elasticity, corrosion resistance, and good insulation properties. The application range of PVC mesh extends from machinery protection and construction fencing to salt and freshwater trap applications. PVC-coated welded wire mesh comes in two forms: rolls and panels, available in green, black, yellow, blue, white, or other colors as per customer requirements.
Finished PVC-coated welded wire mesh exhibits high corrosion resistance. Galvanized welded wire mesh is coated with a thick layer of PVC, tightly bonded to the metal wire through heat treatment, providing dual protection. The vinyl coating not only seals the wires from water and other corrosive elements but also protects the underlying mesh with the zinc coating. This welded mesh has various applications, including attractive courtyard and garden fences, pool fencing, kennel flooring, dog enclosures, animal cages, and lobster traps.
PVC coated welded wire mesh is used for fencing, decoration and mechanical protection in various industries, agriculture, mining development, sports fields, breeding, transportation, etc.
Industrial Security
Wire Mesh Animal Cages and Enclosures
Wire mesh dog kennel flooring
Wire mesh lobster traps
Wire mesh oyster trays
Wire mesh crab trap
Wire Crawfish Trap
Wire mesh rodent guards
Wire mesh solar panel guards
Wire Mesh Home and Garden Fence
Wire Mesh Marine Fence
Wire Mesh Machine Guards
Decorative Wire Mesh Applications
Regular Specification
| Wire diameter | Mesh ( inch) |
| 23Gauge | 1/4" x 1/4" |
| 19Guage | 1/2" x 1/2" |
| 16Guage | 1/2" x 1/2", 1/2" x 1", 1" x 1", 3" x 2" |
| 14Guage | 3/4" x 3/4", 1" x 1", 1" x 2", 2" x 2", 4" x 4" |
| 12-1/2Guage | 1" x 1", 1" x 2", 2" x 2", 2" x 4" |
| 11Guage | 2" x 4", 3" x 3" |
| 10-1/2Guage | 2" x 2", 4" x 4" |
Remarks: 1. Color: green, black, yellow, blue, white or other colors as requested by customers. 2. Other specification could be customized. 3. Standard roll length: 30m/25m; width: 0.5m to2.4m 4. Special sizes available at request 5. Packing:Custom packing available at request. | |

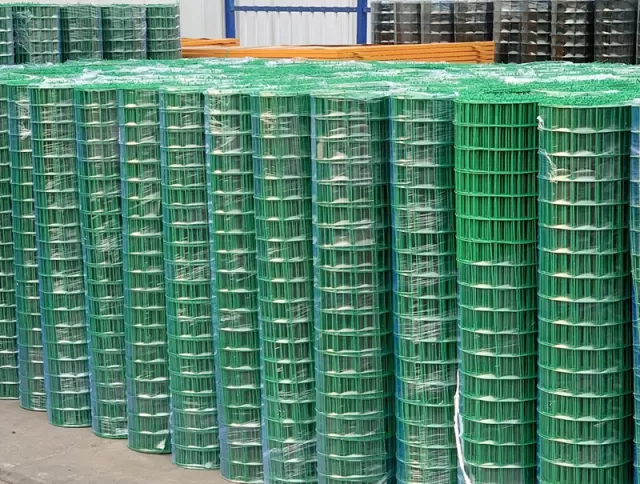

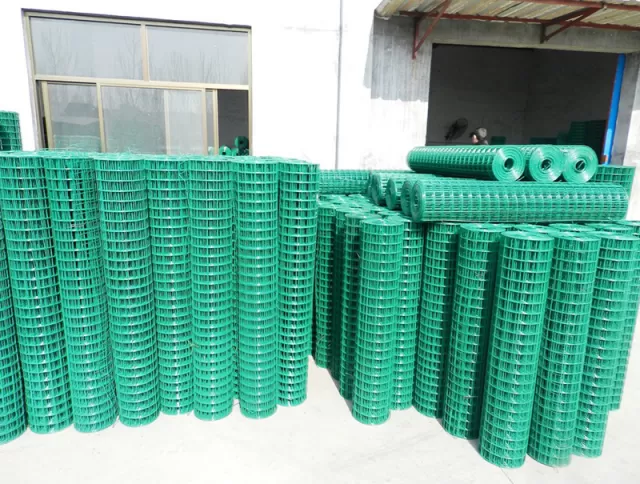

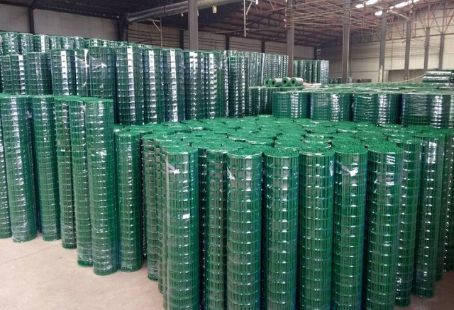

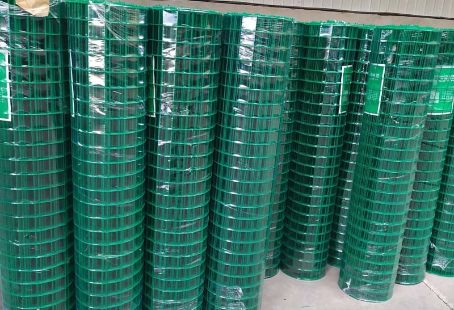

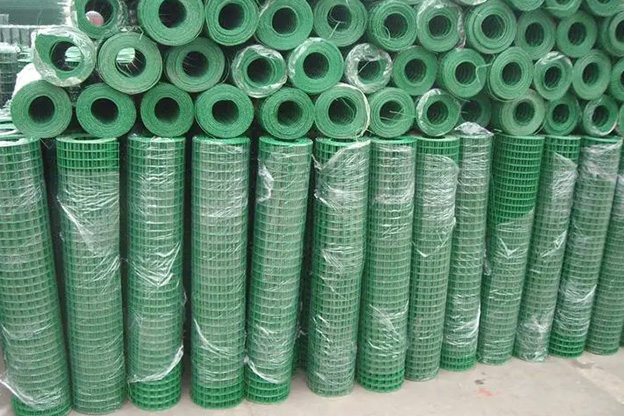

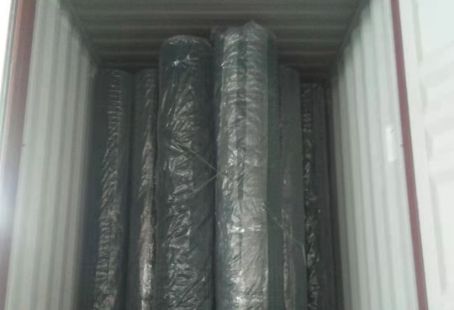

Packaging & Delivery
