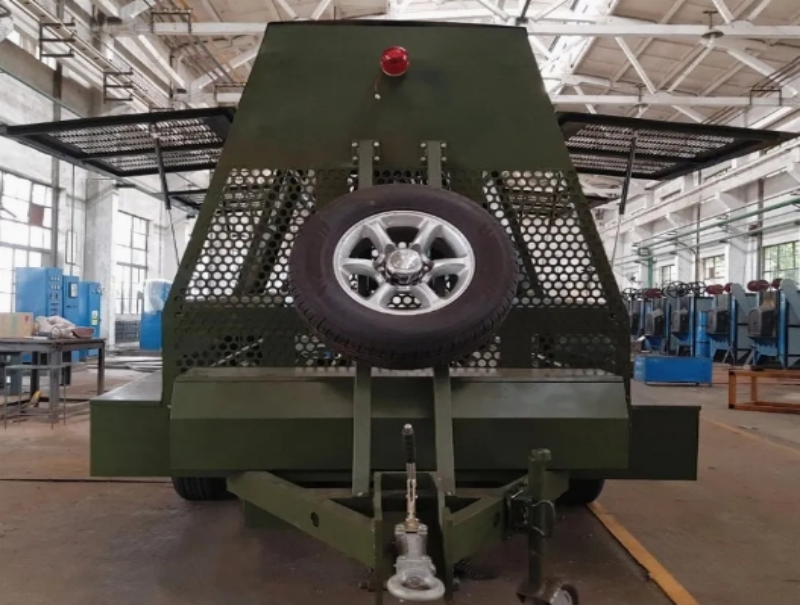

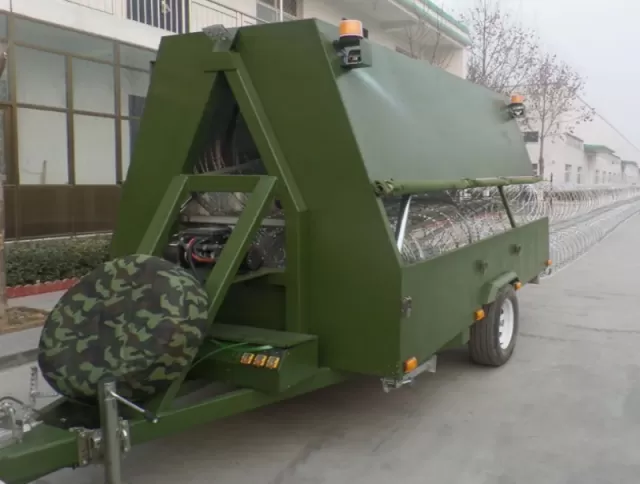

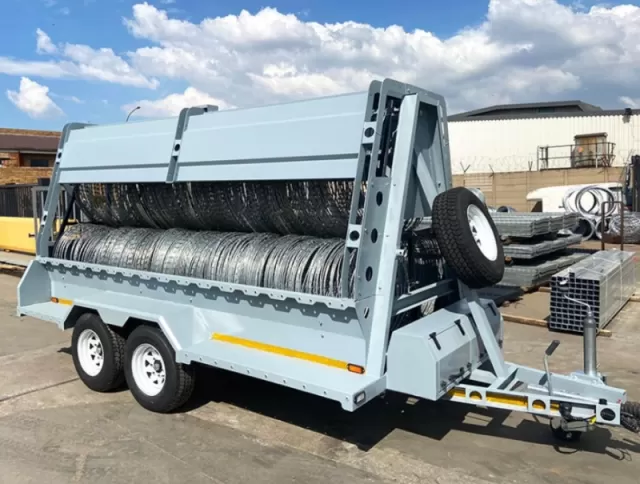

Razor Wire Trailer (or Mobile Security Razor Barrier) is a portable, rapidly deployable security system designed to establish temporary perimeters in high-risk or sensitive areas. It combines mobility with robust physical deterrence, making it ideal for scenarios requiring immediate security reinforcement. This trailer-mounted unit can be towed by various vehicles such as trucks, jeeps, or ATVs.
DESCRIPTION
Rapid Deployment Security Barrier is designed to quickly establish large-scale, extensive temporary perimeter barriers or defensive lines in tactical, security, and emergency scenarios. Deployment Security Barrier revolutionizes the traditional manual deployment process, significantly enhancing obstacle-laying speed and ensuring operator safety.

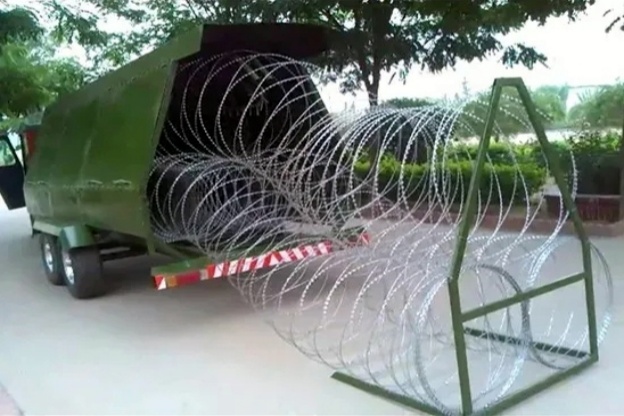

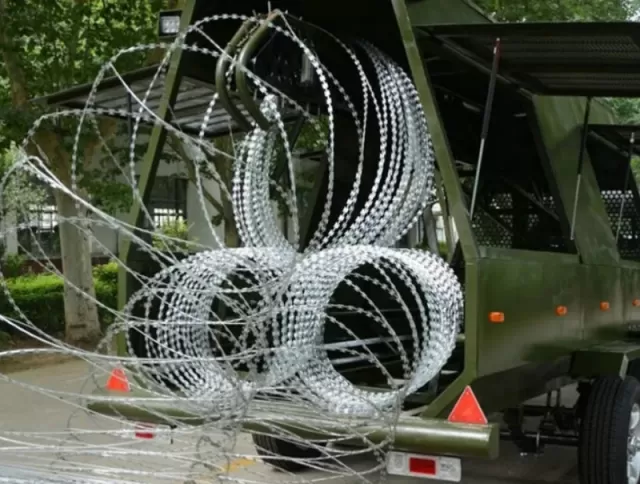

Rapid Deployment: Barrier Razor Barbed Wire Car lay down hundreds of meters of razor wire barrier in just minutes, far surpassing manual speed.
Mobile & Versatile: The trailer design allows it to be towed to any accessible location, enabling flexible barrier placement along roads, perimeters, and rough terrain.

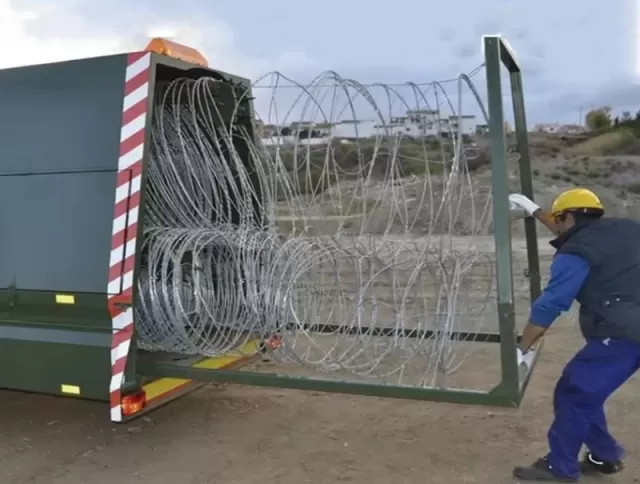

Safe Operation: Operators can deploy the wire from the safety of the tow vehicle's cabin or a safe distance, minimizing the risk of cuts from the sharp blades.
Consistent and Controlled Deployment: Ensures the razor wire is laid out uniformly, creating a more effective and predictable obstacle.

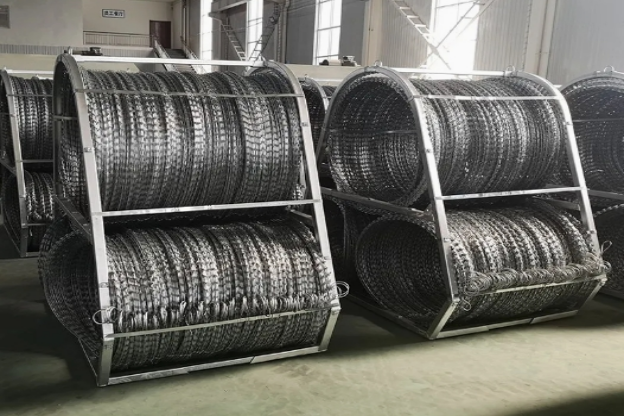

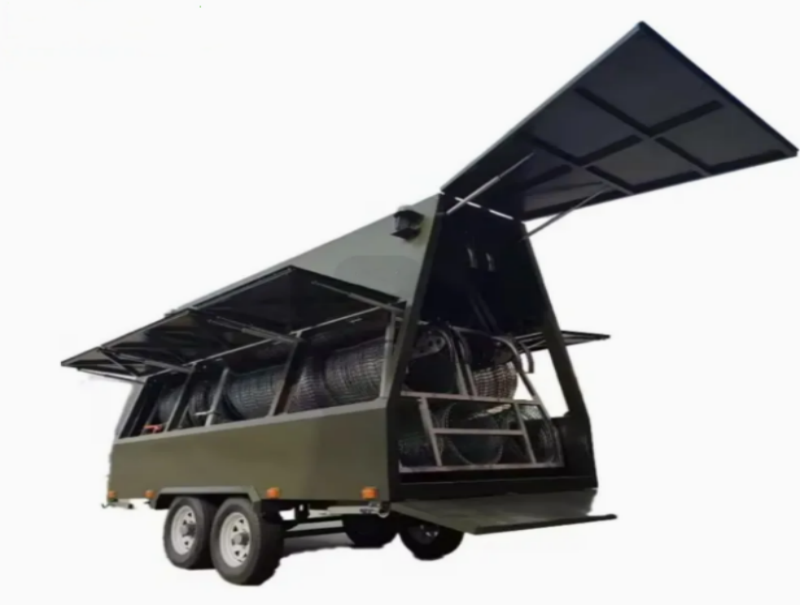

High Capacity: Barrier Razor Barbed Wire Car can carry multiple large coils simultaneously, enabling the creation of extensive barriers in a single trip.
Robust Construction: Deploy Razor Barrier Trailer built from durable materials to withstand harsh field conditions and the abrasive nature of the wire.
Regular Specification
| Parameter | Specification |
| Total Weight of Trailer | 3,200 kg |
| Trailer Size | 5,600 mm(L) x 1,930 mm(W) x 2,557 mm(H) |
| Razor Wire Type | BTO-22 |

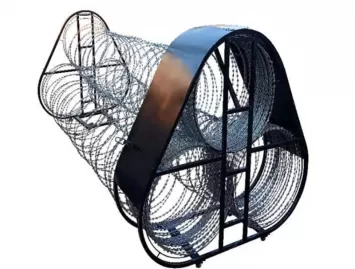

| Razor Wire Structure | Top coil diameter: 980mmBottom coil diameter: 730mm |
| Extended Length | 3 Coils |
| Razor Wire Storage Size | 800 mm(L) x 1,510 mm(W) x 1,660 mm(H) |
| Razor Wire Deployment Size | 200 m(L) x 1.5 m(W) x 1.5 m(H) |
| Barrier-settingTime | 1 - 3 minutes |
| Barrier-recovering Time | 15 - 20 minutes |
| Minimum Order Quantity (MOQ) | 10 units |
| Loading Capacity (40ft High Cube Container) | 2 units |
Unmatched Efficiency: Drastically reduces the time and manpower required to establish a secure perimeter. Transforms a team-hour task into a one-person, minute-long operation.
Force Multiplier: A single trailer and operator can achieve the barrier-laying effect of an entire team, freeing personnel for other critical duties.
Enhanced Safety: Greatly reduces the risk of hand injuries for personnel during deployment.
Tactical Superiority: Provides immediate obstacle emplacement for force protection, area denial, and crowd control in fast-evolving situations.
Cost-Effective: Saves on labor costs and reduces the potential for costly injuries and associated downtime.
Military & Defense: Establishing temporary defensive perimeters, blocking routes, and creating tactical obstacles.
Border Security: Rapidly deploying barriers along remote or vulnerable border sections to control illegal crossings.
Law Enforcement & Riot Control: Quickly sealing off areas during riots, civil unrest, or major crime scenes to control movement and protect infrastructure.
Prison & Critical Infrastructure Security: Creating instant outer perimeters around sensitive sites during a security breach or elevated threat.
Disaster & Emergency Management: Cordoning off disaster zones, contaminated areas, or other hazardous locations.
Event Security: Temporarily securing the boundaries of large public events.
