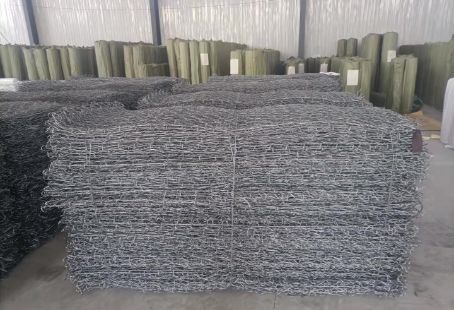

Double Twisted Hexagonal Mesh Gabions are rectangular cages crafted from hexagonal double-twist wire mesh and filled with suitably sized rock or quarry stone. Gabions serve as established, robust, and technically proven methods for erosion control and earth retention. The strength of gabions is derived from a double-twisted hexagonal mesh of steel wires. In case of accidental damage or breakage of one or more wires, the double-twisted wire configuration ensures that there is minimal reduction in strength.
DESCRIPTION

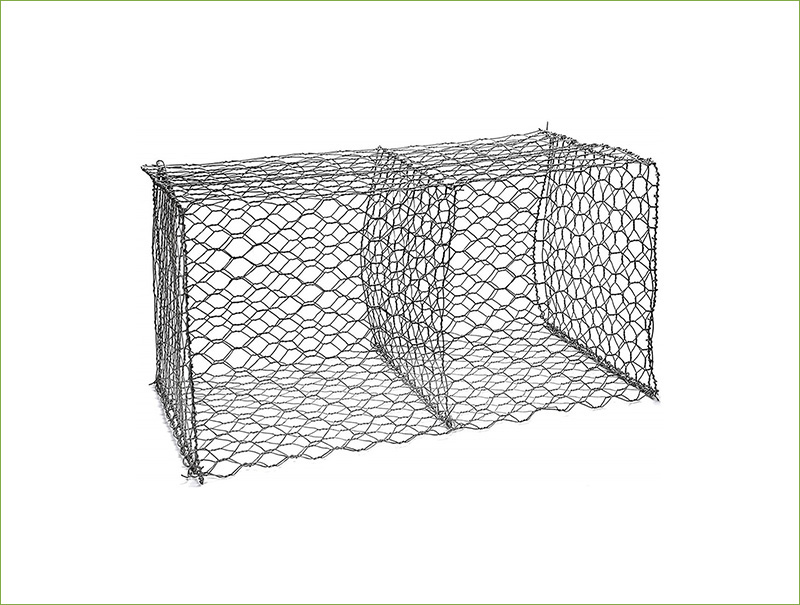

Double Twisted Hexagonal Mesh Gabions are rectangular cages constructed from hexagonal double-twist wire mesh and filled with rocks or quarry stones of suitable size. Gabions serve as a well-established, robust, and technically proven method for erosion control and earth retention. The strength of gabions is derived from a double-twisted hexagonal mesh of steel wires. In case of accidental damage or breakage of one or more wires, the double-twisted wire configuration ensures that there is minimal reduction in strength.
The Reno Mattress is a specific type of gabion box commonly employed for riverbank protection, featuring a thickness or height less than 500mm in comparison to the standard gabion box.
Galfan Hexagonal Mesh Regular Size
| Item | Galvanzied /Galfan Gabions (mm) | PVC Coated Gabions (mm) |
| Mesh size | 60x80mm, 80x100mm,100x120mm | 60x80mm, 80x100mm,100x120mm |
| Mesh Wire | 2.4mm / 2.7mm / 3.0mm | 2.4mm/3.4mm2.7mm/3.7mm3.0mm/4.0mm |
| Lacing Wire | 2.2mm | 2.2mm/3.2mm |
| Selvedge | 3.0mm / 3.4mm / 3.9mm | 3.0mm/4.0mm3.4mm/4.4mm3.9mm/4.9mm |
Galfan Gabion Box Regular Size
| Length (m) | Width (m) | Height (m) | Cell Nos (Pcs) |
| 1 | 1 | 1 | 0 |
| 2 | 1 | 1 | 1 |
| 3 | 1 | 1 | 2 |
| 4 | 1 | 0.3 | 3 |
| 5 | 1 | 0.3 | 4 |
| 6 | 1 | 0.3 | 5 |
| 1 | 1 | 0.5 | 0 |
| 2 | 1 | 0.5 | 1 |
| 3 | 1 | 0.5 | 2 |
| 4 | 1 | 0.5 | 3 |
| 5 | 1 | 0.5 | 4 |
| 6 | 1 | 0.5 | 5 |
Corrosion and rust resistance. Hot dipped galvanized and various other materials can protect gabions from corrosion and rust.
Acid and alkali resistance. Outstanding chemical stability make the gabion to be used in the harsh environments.
High tensile strength. High quality material supplies high tensile strength to defend the high impact from external force.
Wide range of applications. The galvanized gabions can be used in protective and decorative applications in different fields.
Economical. Different materials and structure to satisfy different requirements for the budget and performance.
Ecological. It can maintain the healthily growth of plants and make the gabions be blended with surrounding environments.

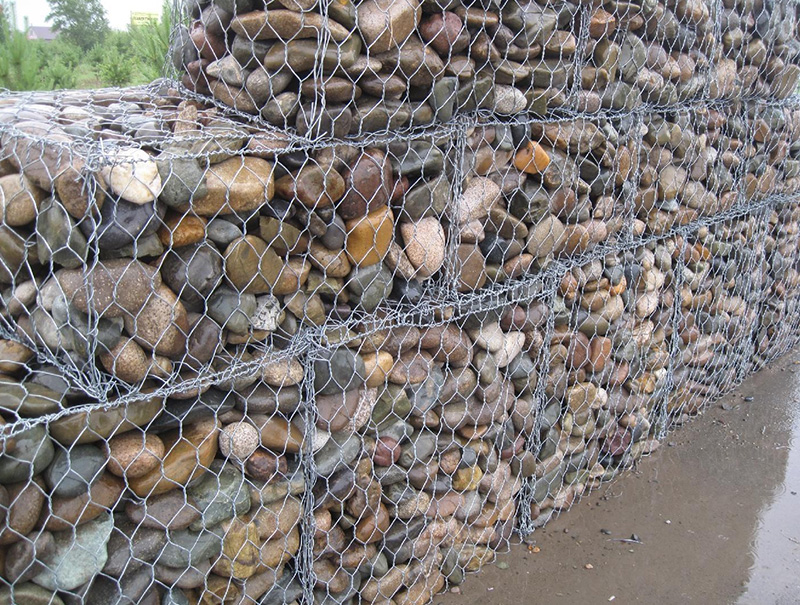

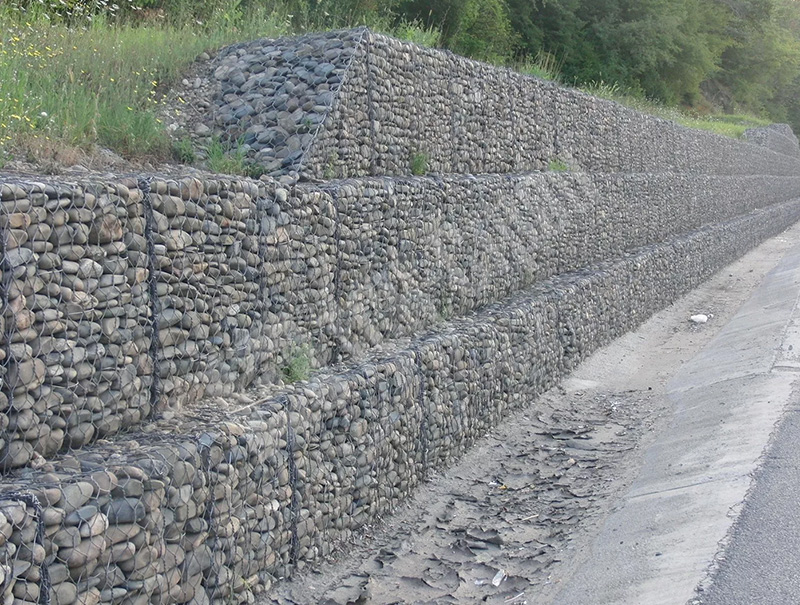

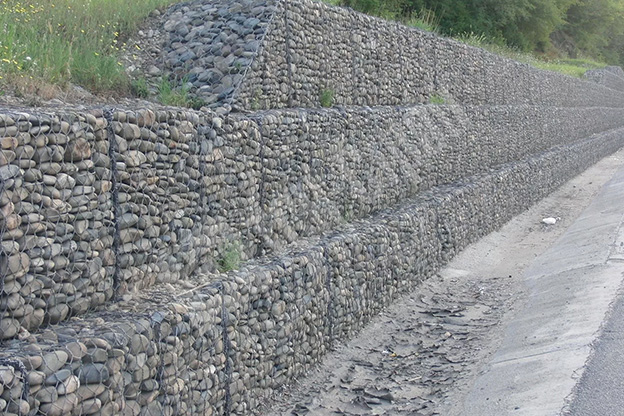

Retaining Wall.

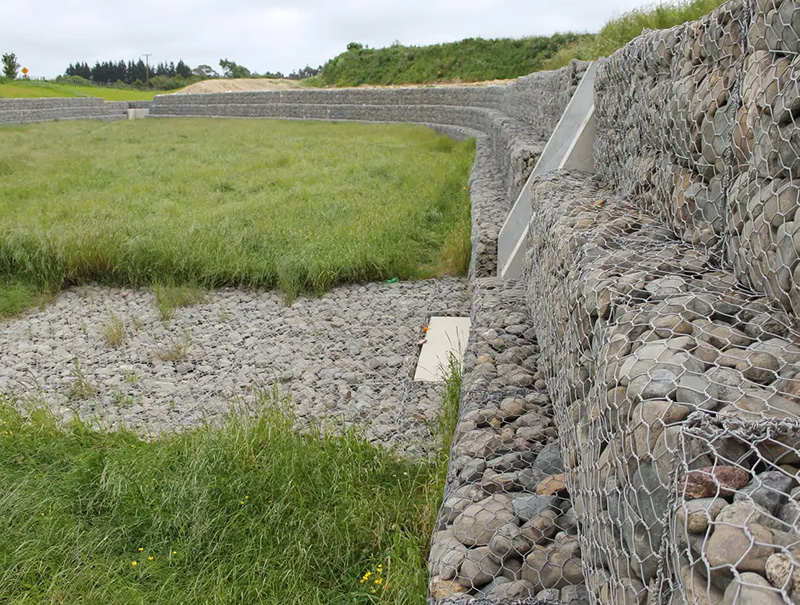

Channel Lining.
Bridge Protection.
Dam Protection.
Riverbank Protection.

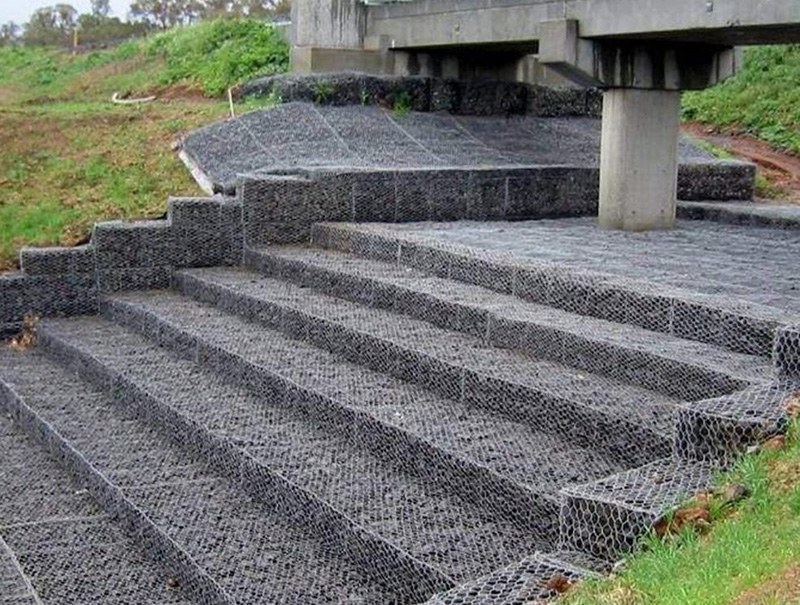

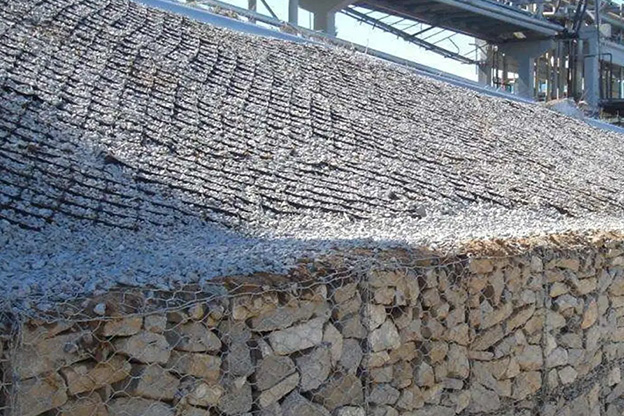

Slope Protection.
Coastal Protection.
Flood Controlling.
River Regulation.
Fireplace.
Landscape Construction.
Gabion Planter.

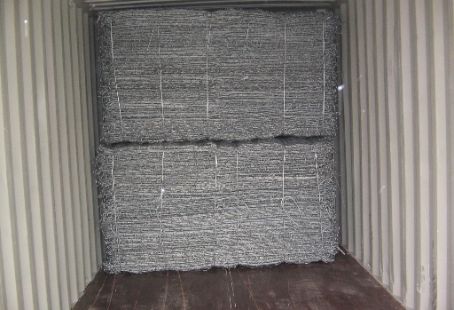

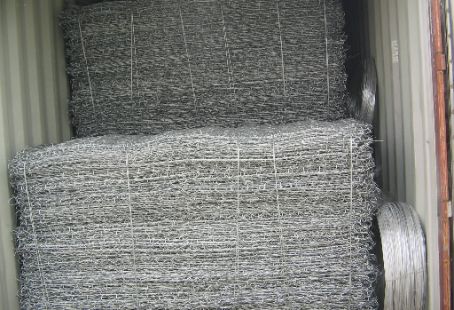

Packaging & Delivery
