Tank trap nets are a common defense device designed to prevent, delay or stop enemy tanks and other mobile armored vehicles. They are made of high-strength, corrosion-resistant metal wires woven through precise machinery. Tank barrier nets are mainly used to set up roadblocks to prevent or slow down the speed of enemy tanks and armored vehicle convoys.
After deployment, the tank nets form an inconspicuous barrier, aiming to prevent the advance and mobility of people crossing national borders and providing conditions that can be destroyed.
DESCRIPTION
Tank trap nets are a common defense device designed to prevent, delay or stop enemy tanks and other mobile armored vehicles. They are made of high-strength, corrosion-resistant metal wires woven through precise machinery. Tank barrier nets are mainly used to set up roadblocks to prevent or slow down the speed of enemy tanks and armored vehicle convoys.
After deployment, the tank nets form an inconspicuous barrier, aiming to prevent the advance and mobility of people crossing national borders and providing conditions that can be destroyed.
Specification Detail Show:
The height of the metal mesh is composed of 4 columns of interconnected spiral lines or rings:
The thickness of the spiral lines in the first column is 0.9 millimeters, that in the second column is 0.8 millimeters,
that in the third column is 0.6 millimeters, and that in the fourth column is 0.5 millimeters.
The width is made up of 25 wires, with spiral wires or rings interconnected.
The diameter of the wires is 0.4 - 0.9 millimeters.
The diameter of each wreath is 0.45 meters, and each row consists of 30 wreaths, with each wreath composed of 50 wires.
Each set of metal mesh should be equipped with: 40 fixed rings and 40 fixed pins.
1.There is a minimum of significance;
2.Installation on all surfaces (horizontal and vertical);
3.Kit design is easy to install and expand;
4. Additional security alarm system can be installed.

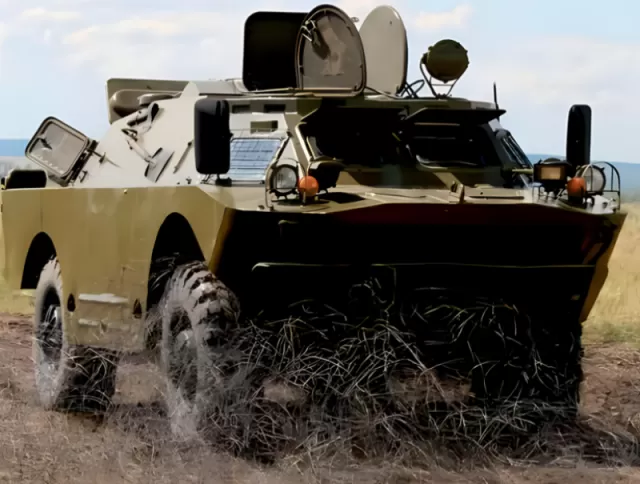

1.Military Fortifications: Deploy the mesh on battlefields to stop or slow down advancing tanks and armored vehicles.
2.Border Security: Use the mesh as a barrier to prevent unauthorized crossings and protect national borders.
3.Infrastructure Protection: Install the mesh on highways, bridges, and other strategic points to safeguard against potential threats.
4.Multi-Layered Defense Systems: Combine the mesh with other defensive measures to create a comprehensive security network.
Regular Specification
| ITEMS | Metal wire mesh for storage tanks / Tank barrier/Tank wire mesh/ Anti-tank barrier net/Tank obstacle wrapping net/Tank track net / Winding net / Inconspicuous Obstacle Fence |
| Material | 70# Steel |
| SPECIFICATION | |
| TYPE 1 | 5588 |
| Wire Diameter | 0.5mm ，0.5mm， 0.8mm， 0.8mm |
| NO. Coils | 30coils |
| NO Layers | 25layers |
| Weight | 25KG/SET (Including accessories) |
| Unfold Size | 10m×10m×1.2m |
| Fold Size | 1.2×0.6×0.12m |
| TYPE 2 | 5689 |
| Wire Diameter | 0.5mm ，0.6mm， 0.8mm， 0.9mm. |
| NO Coils | 30coils |
| NO Layers | 25 layers |
| Weight | 29kgs/set (Including accessories) |
| Unfold Size | 10m×10m×1.2m |
| Fold Size | 1.2×0.6×0.12m |
| Features | Anti-rust, safe, sustainable and with an extremely long service life |
| Production Process | Weaving and winding |
